SYZN-TV1000

TV1000 triangular tracked chassis standing slip loader products are unique.

A The powerful power system use Kubota D902 EPA emission three-cylinder diesel engine, which is reliable and durable, with a large-diameter cooling fan, a high-performance super-large cyclone air filter, easy starting, and lower vibration.
B Walking system: The 250mm wide track provides customers with a smaller footprint, and can easily enter the 1000mm wide door entrance. The track type reduces the pressure on the ground and enhances the ability to lower. The high-position track sprocket design of the chassis reduces the premature wear of the sprocket under rocky soil conditions, and the D1 cast EPA drive wheel is heat-treated to achieve a longer life and reduce operating costs.
C Operating system: The pilot operating system makes work easier. The attachment control link adopts an integral quick-change design, which makes it easier and more convenient for customers to replace attachments.
D Convenient attachment quick-change hook system, quick switching of attachments without tool assistance, tool-free oil pipe quick-change docking system, a single person can quickly connect the hydraulic pipeline, and the fully sealed closed quick-change joint design ensures that foreign matter cannot enter the hydraulic system to prevent hydraulic system failure.

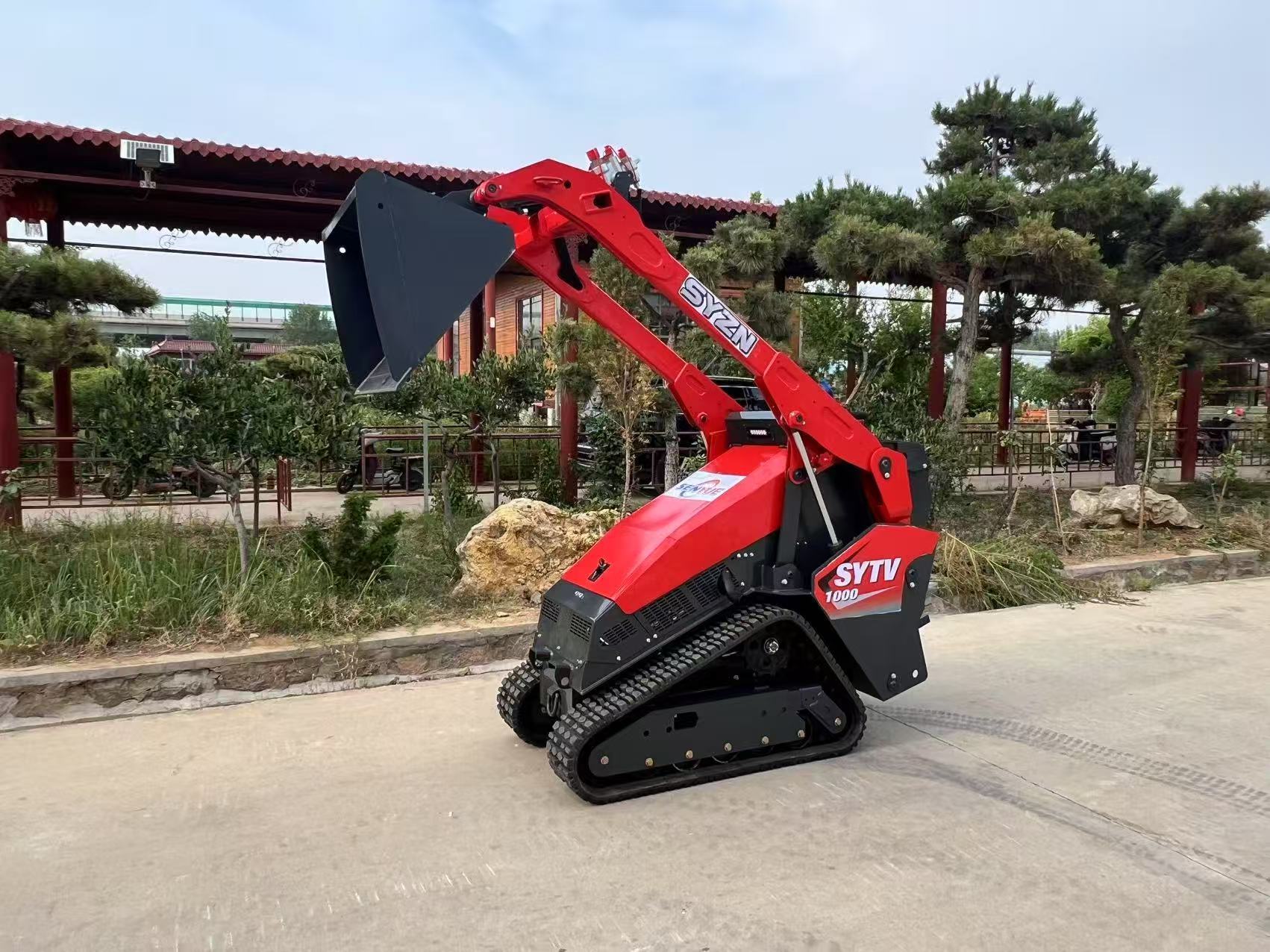

E Powerful lifting arm design, suitable for a variety of environments, strong lifting force. The hydraulic pump and cylinder are reasonably matched, and the operation cycle is short.
F Easy to use: The hydrostatic drive system walks smoothly, and the stepless speed change operation mode can achieve walking, backing, turning and other functions without frequent gear shifting.
G Humanized safety design. The left and right sides of the integral frame mechanism are all fuel tanks, and the driver is more comfortable and relaxed to operate away from heat sources.
H The engine and hydraulic components can be inspected by opening the front cover, which is convenient for routine maintenance and repair.
